What are Linear Rails?

What are Linear Rails?

Linear Rails are ideal for moving items through a production process with great precision and as little friction as possible if creating, packing, and distributing products. Linear Rail is a type of gadget that is frequently utilized in a variety of industries.

A linear rail system is one that is designed to sustain the movement and load of a piece of equipment in a vertical or horizontal direction. It's a pretty simple piece of mechanical equipment that does a very simple task well, allowing the movement of goods through the production or packaging process to be easy and safe.

Linear rails are referred to by a variety of names, including linear guide rails, linear guides, linear guideways, linear slides, and linear guiding systems. A linear rail efficiently transfers weights along a predetermined horizontal or vertical course with the least amount of friction or resistance.

Linear guide rails are normally made of corrosion-resistant high-strength, toughened, and galvanized steel. Before installing a roller runner, the metal is formed and contoured using a cold drawing method. Profiled rail guides are typically the best choice for large loads since they are designed to produce a very precise linear motion. Rail guides are available in a variety of sizes, starting with minuscule linear rails for moving small components in tight spaces.

Design of Linear Rails

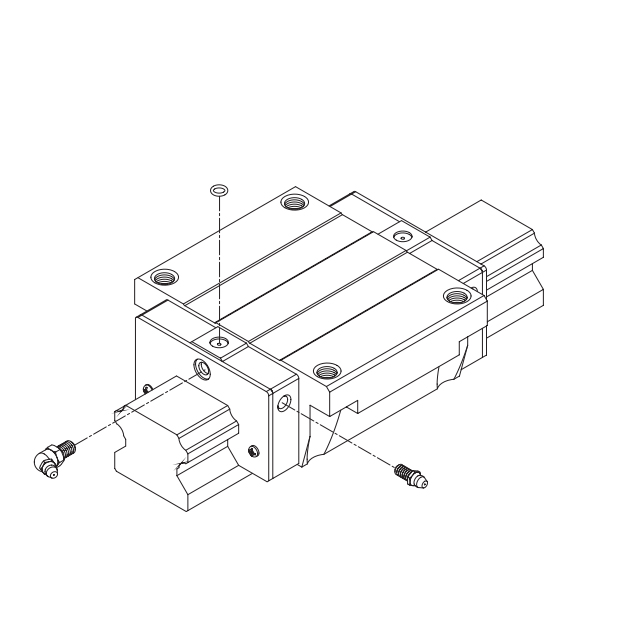

Based on application, linear rails can be constructed in short lengths or in larger dimensions (>2m) to provide a wide range of motion. Two types of linear guides are used in the industrial sector today: the runner with ball bearings and the runner with rollers. The rail and the runner are the two components of the linear guidance system. The latter moves from front to rear inside the rail. The assembly's moving parts are recirculating balls or roller bearings. They have threads to secure the object that has to be transferred.
