HK1212 Single Row Drawn Cup Needle Roller Bearings

Description of needle roller bearing

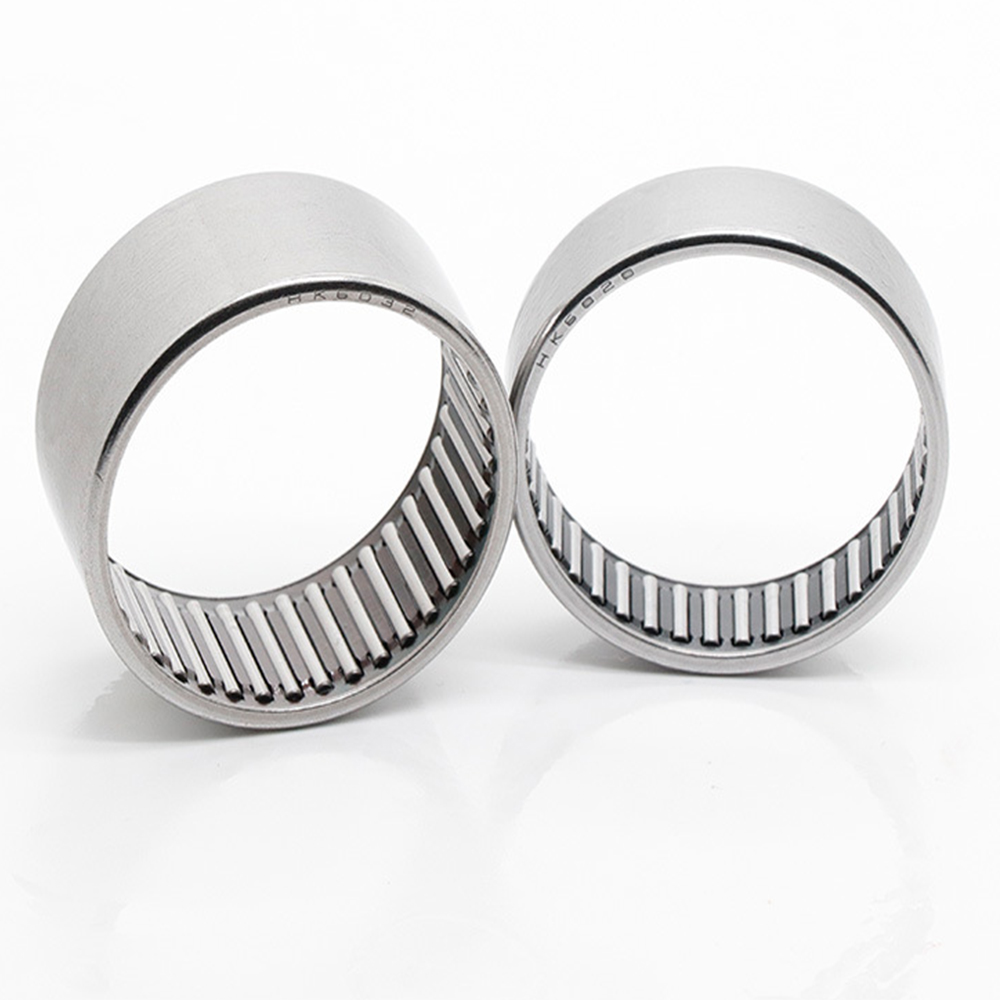

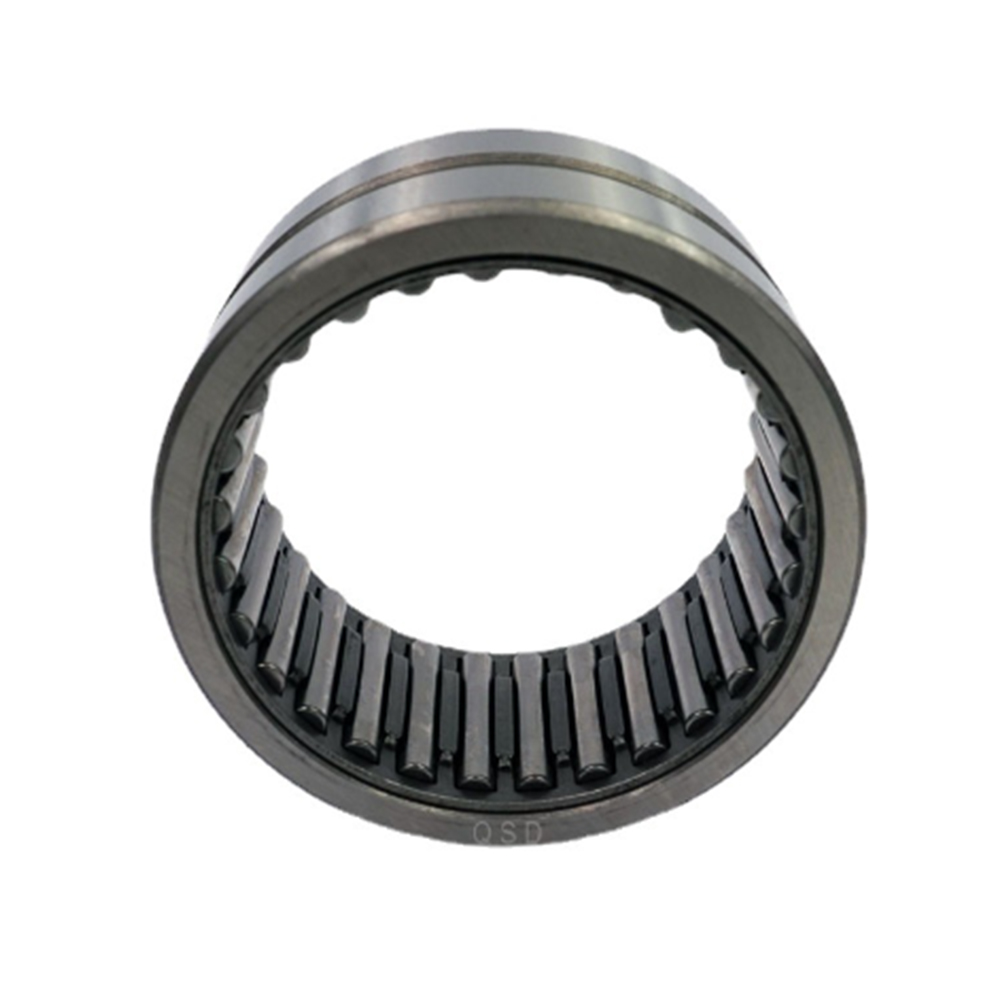

HK series single row needle bearing is a kind of needle roller bearing with very small radial section size. It mainly consists of a thin wall stamping outer ring with needle roller and cage assembly. These types of bearings are favored in space-constrained industrial applications due to their compact structure and high load capacity.

The stamped outer ring needle roller bearing is formed by precision stamping of ST14 steel plate and treated with high temperature carbonitriding.  It is characterized by small profile height and strong load capacity.  The G2 outer ring raceway of needle roller is guided by a high rigid cage to make it better parallel to the axis.
The outer ring of this type of needle roller bearing adopts a static fit with the bearing box, and does not require a suction fixing device.  Even under high speed and large load conditions, the bearing function can be fully maintained.  In addition, due to the large volume of fat storage, it can not add grease for a long time, but also ensure the long-term flexible rotation of needle roller bearings, and the equipment runs smoothly.

Feature and advantage of needle roller bearing

The design of HK series bearing has its own unique features, mainly reflected in the following aspects:
1.Space saving: The height of the radial section of the bearing is very small, allowing it to be used in the case of a very compact internal space between the shaft and the bearing housing.
2.High load capacity: Despite their small size, thanks to the optimized design, these bearings have high load capacity and are able to withstand high radial loads.
3.Economical and convenient: The design of the stamped outer ring makes it ideal for economical and high volume production. When installing, the outer ring and the bearing box adopt static fit, no axial fixing device is needed, so the installation is very simple.
4.Sealing options: Depending on the needs of the environment, HK series can provide models with sealing rings (e.g., HK... -RS single side seal, HK... -2RS for double-sided seal), can effectively prevent the intrusion of contaminants and grease leakage.

Physical design of needle roller bearing

1.The stamping outer ring process is used to achieve a balance between lightweight and high rigidity, and the outer diameter tolerance is controlled within ±0.01mm
2.Single row needle roller arrangement design, axial bearing capacity of radial load up to 30%

Key selection and installation points of needle roller bearing

1.Shaft requirements: Since such bearings usually have no inner ring and the needle rolls directly on the shaft, the surface of the shaft with which it is required must be hardened and grinded, and the hardness usually needs to reach more than 670HV to ensure the raceway accuracy and service life.
2.Bearing seat hole tolerance: When the bearing seat material is steel or cast iron, the recommended hole tolerance is N6.
3.Lubrication: bearings can be lubricated by grease or oil. Sealed bearings are usually lubricated internally at the time of supply. It should be noted that the limit speed under grease lubrication is usually lower than that under oil lubrication.
4.Axial positioning: The bearing itself is positioned radially by pressing into the seat hole, but the needle roller and cage assembly must be positioned axally, which can be achieved by clenching rings or peripheral structures inside the housing.

Performance benefits of needle roller bearing

1.Limit speed: grease lubrication up to 15,000rpm, oil lubrication up to 25,000rpm
2.Wear resistance: surface HRC58-62 heat treatment, life than ordinary bearings increased by 40%

Application scenarios of needle roller bearing

1.Automotive industry: starter one-way clutch (such as HK28.2x35.2x14.8-3RS model)
2.Power tools: Motor spindle support (HK0408TN and other mini models)
3.Textile Machinery: High speed spindle bearing (HK0612 series)
